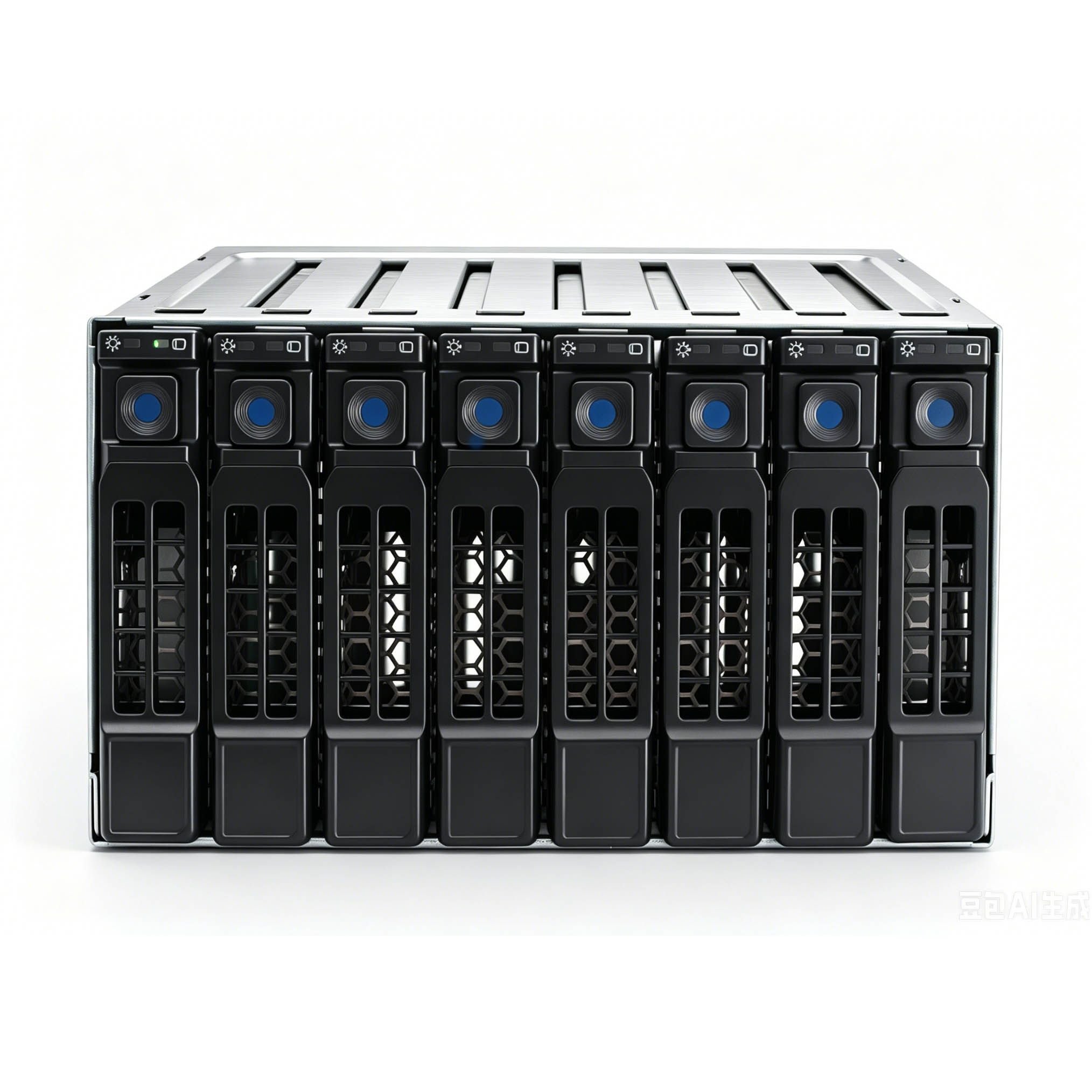

2.5 "8 Bays Hard Disk Cage Module

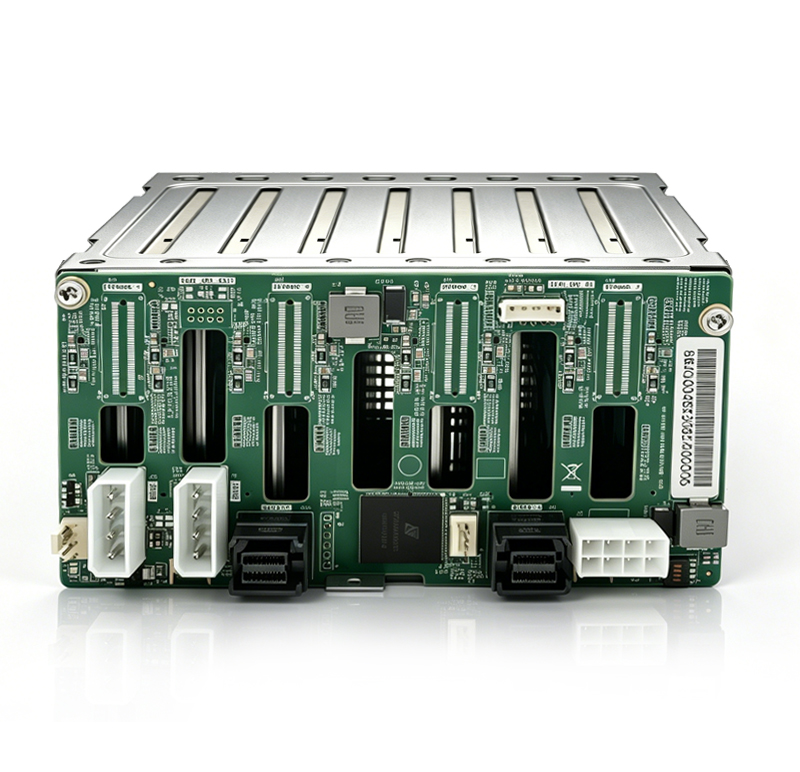

Hard Drive Backplane
Model : MB-I6110
- Modular: Modular hard disk modules can be applied to servers, workstations, industrial computers and other product usage scenarios.
- Diversification: NVMe/SAS/SATA triple mode, SAS and SATA backplanes can be selected as needed.
Product Feature
- Supports 8pcs 2.5 "hard disk or NVMe SSD
- Support SATA6Gb, SAS12Gb,PCIe 3.0, 4.0
- Optional SAS/SATA direct attached, NVMe/SAS/SATA mixed-mode backplane
- Optional 4P input or CPU8 P input power supply
Customized Service
Technical Specifications
|
Product Name |
2.5'' 8 Bays Hard Disk Cage Module |
|
Hard Disk Qty |
8 |
|
Hard Disk Connector Type |
2.5'' -- SAS/SATA, NVMe SSD |
|
Material |
SGCC galvanized steel sheet |
|
Input Connector |
Support SATA6Gb, SAS12Gb, PCIe 3.0, PCIe 4.0 |
|
Backplane Type |
Optional backplane with SAS/SATA direct-attached and NVMe/SAS/SATA hybrid mode support |
|
Power Supply Connector |
Optional 4Pin input or CPU 8Pin input power supply |
|
Application |
Server/Workstation/IPC |
|
Size |
140mm*137.35mm*81.3mm |
